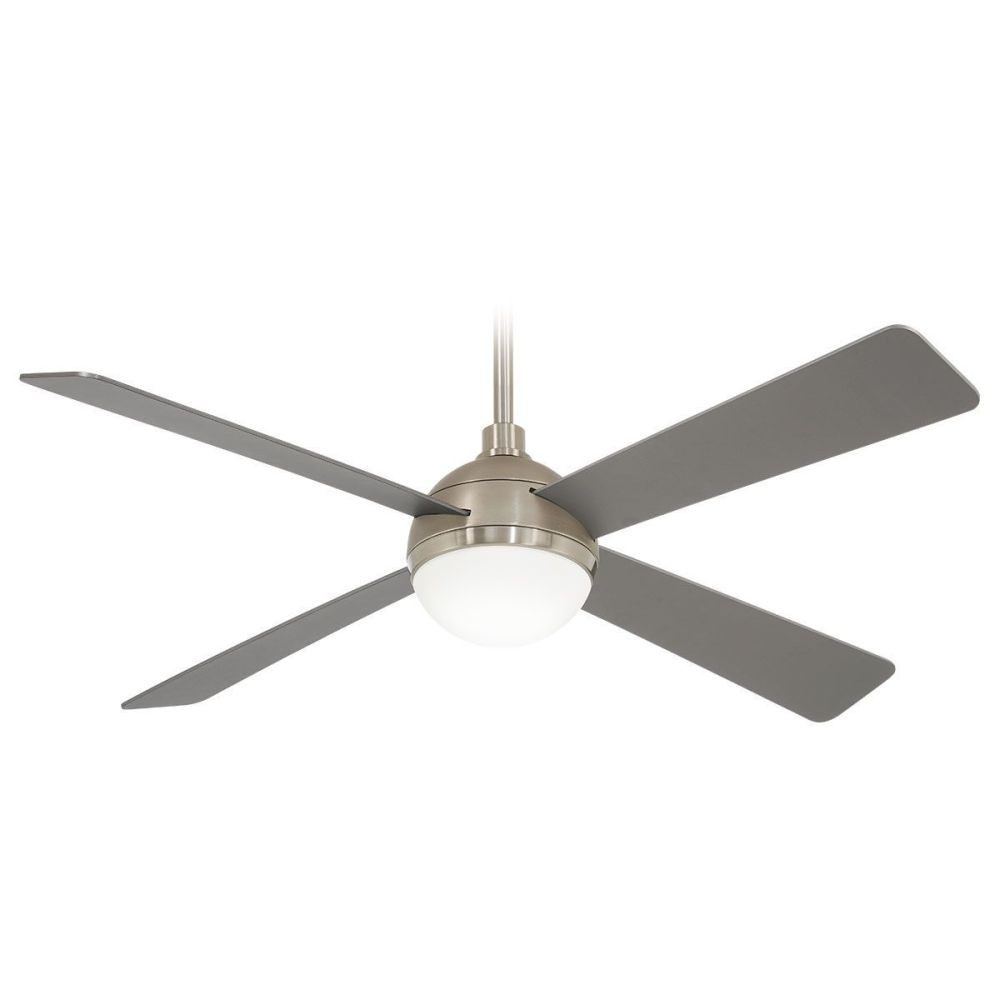

Though simple in shape Orb offers detail and accenting that elevates this common form to a conversation piece in any home. Inspired by vintage pendants with a modern appeal, Orb is flawlessly implemented, and difficult to overlook.

• Rod Length(s): 6 x 0.75

Orb Indoor Fan Dimensions

• Diameter: 54" Blade tip to blade tip
• Dimensions when using the included 6" down rod:
• Ceiling fan height: 16.75" From ceiling to bottom of the light kit.
• Blade drop Height: 12.25" From ceiling to the top of the fan blades.
• Requires a 8' ceiling for proper mounting safety.
• Can be mounted on a vaulted ceiling.

Motor Information

• Strong AC motor 153 x 17mm
• 3 speeds forward and reverse
• The motor is covered under a limited lifetime warranty and is available in 5 designer colors.
• Hanging Weight is 15.61 lbs

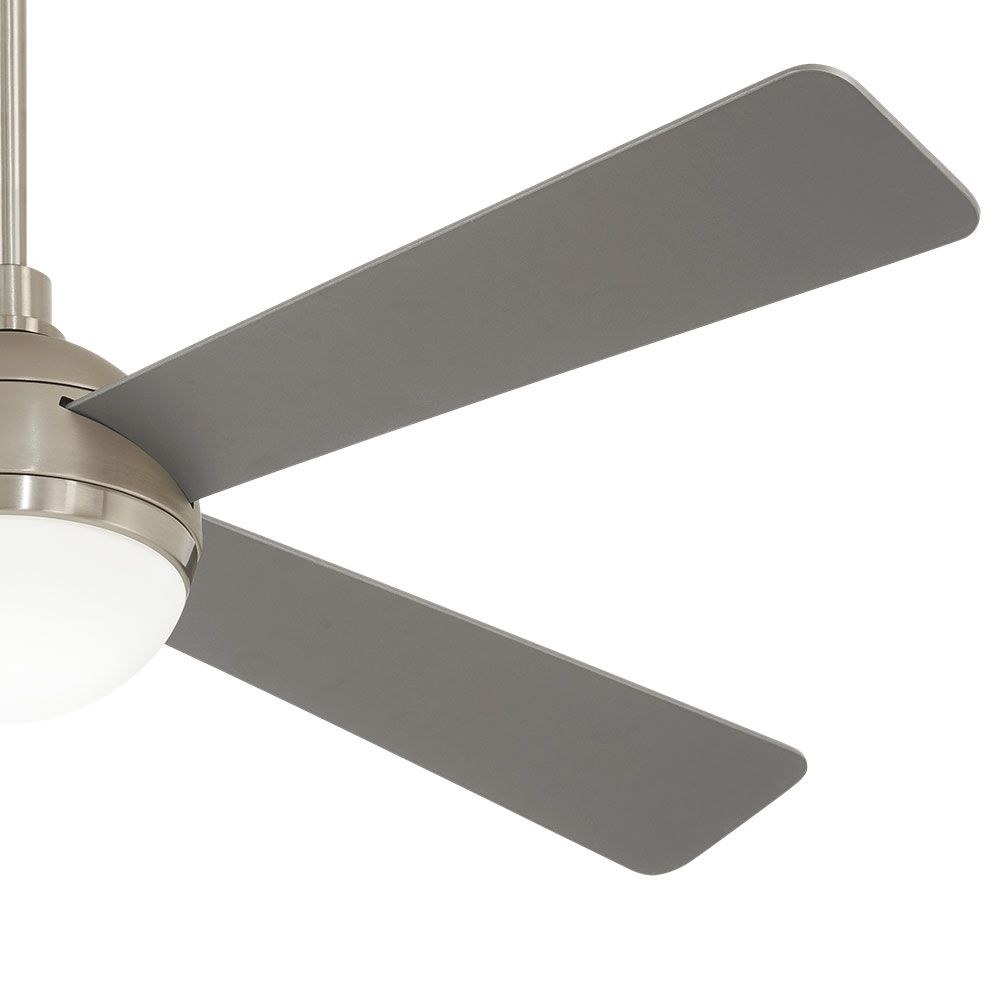

Fan Blades

• Orb in the Brushed Carbon finish comes with 4 blades.
• The blades are a brushed carbon finish to match the motor color.
• The blade pitch is 12°
• The blades create an optimal airflow of 4985 CFM when used on the highest speed, while using only 59 watts of electricity!
• Lead wire 80"
• Blades are constructed of plywood with paper overlay.

Control

• Handheld/Wall control is included with the fan. RCS213
• 3 Speeds forward and reverse.
• Manual reverse switch located on the motor housing.
• Compatible wall control WCS213
• Compatible Smart control BD-1000

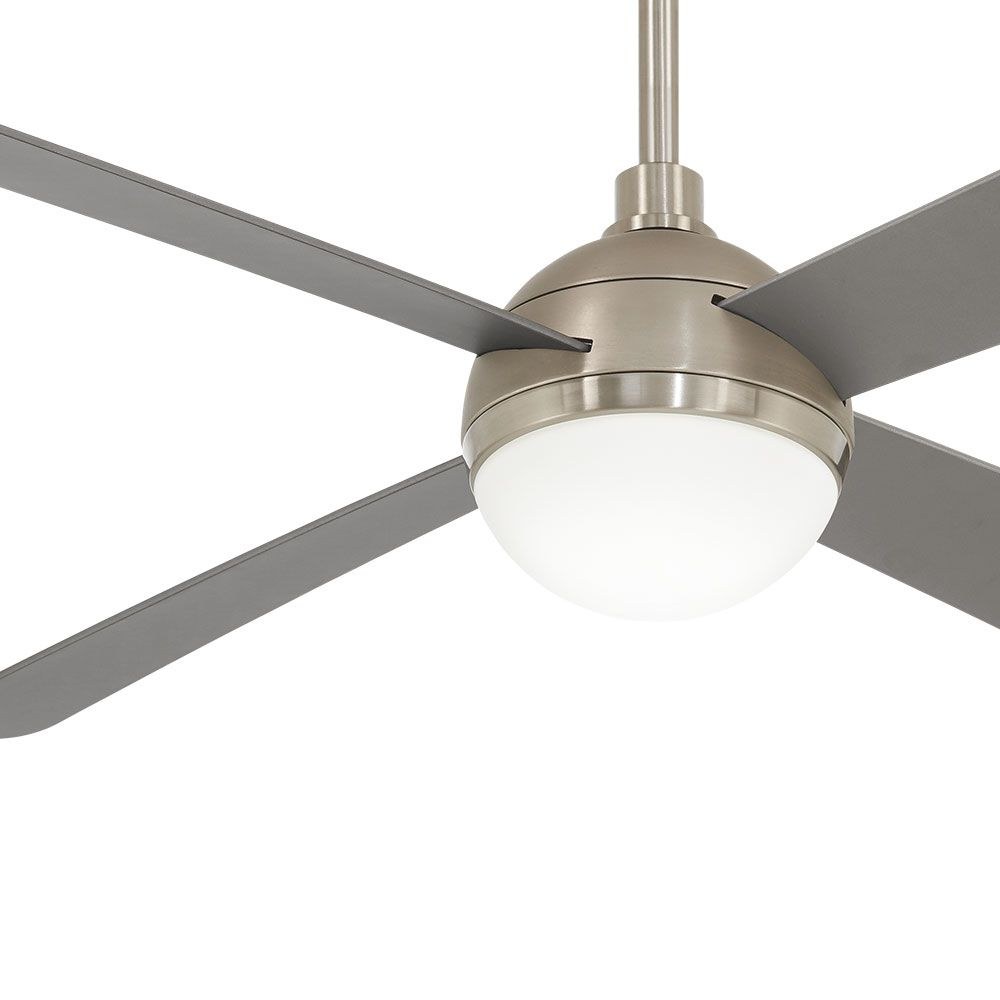

Light Kit

• Light kit is included with the Orb fan.
• Light Kit Specs:
• Z42 led module, Y40 led module socket.
• Wattage: 16
• Lumens: 1412
• Color Temperature: 3000k
• CRI 91
• Rated life hours 30,000
• Dimmable: Yes
• White Glass, 8.5" wide, 3.75" tall

Room Suggestion

• The Orb is a great choice for medium to large spaces that are up to 400 square feet.
• Recommended applications would be bedrooms, family or great rooms, large main suite, loft, gym or exercise areas, garage, barn, warehouse.

Features

• UL listed for indoor use.
• Available in 5 different finishes, Flat White/Soft Brass, Brushed Carbon, Brushed Brass, Brushed Steel, Flat White/Brushed Nickel.
• Large fan with great air movement.
• Handheld/Wall control included.
• 6" Down rod included
• Mid Century Modern design with striking accents.

Seasonal Settings

• Reverse your fan blade direction with the change of seasons for maximum comfort and energy savings.
• Summer Setting - When looking directly up at your fan from below, the blades should be moving in a counter clockwise direction, pushing cool air down.
• Winter Setting - When looking directly up at your fan from below, the blades should be moving in a clockwise direction, pushing air upwards, circulating warm air from ceilings.
